Dual Trumpet Horn + Viair 400c Compressor 2.5G Tank Kit
2 Trumpet Truck Style Air Horn Kit
Check Out our Video Below.
Actual Horn in the Chevy Silverado-See Video.
CLICK HERE TO WATCH ON YOUTUBE
Of course this video does not do justice to just how loud this 140db Truck Horn really is!!
The Dual Trumpet Horn w ill get the attention of folks blocks away.
The Dual Trumpet Truck Style Horn has a great sounding dual tone.
This kit is perfect for Cars, Trucks and SUVs.
It is also great for RVs, OHV and Big Rigs.
This A.P. Dual Trumpet Air Horn is made of zinc-Great shine-NO Rusting
This Assured Performance Air Horn has that awesome truck tone.
The Viair 400c 2.5 Gallon Air System easily can mount in car’s trunk
or in the bed of a pickup or UTV.
If you have an RV, a storage hold is a great spot.
This Viair Air System can be mounted in any position.
It can also be mounted under vehicle as well.
This Viair Air System is considered a underbody kit.
The Viair Air System can also be used for tire inflate, air lockers, air springs.
A Viair 400c system can even be used for pneumatic tools.
The horn is compact enough to fit almost anywhere.
We give you options for compressor upgrades.
Quick and Easy Install for experienced techs.
A.P. Dual Trumpet Air Horn Specs:
DB: 140 @ 10M(120psi)
Solenoid(Electric Air Valve): Included (12v/24v).
Trumpet Diameter: 3.7”
Trumpet Lengths: 14.0”, 11.65”
Overall Dimension: 14” Long x 6.5” Wide x 3.7” Tall
Trumpet Material: CHROME Plated Zinc(non-corrosive)
Mounting Hardware: Included
*Mirror Finish-Trumpets will look like new for years to come.
*Works on any 12v or 24v system.
*Super Loud-Great Bang for the Buck!!
*Can fit these trumpets in tight areas like behind a bumper.
*Over-sized Hi-Flow Air Solenoid.
VIAIR Compressor Kit Specs:
VIAIR 400c Compressor
150psi (33% Duty @ 100psi).
Duty Cycle Explained-CLICK HERE
Amp Draw: 26 amps.
Stainless Steel valves and Bearing
Min./ Max. Ambient Temp: -40F. / +158 F.
Includes 1/4” Stainless Steel braided feeder line.
Nickel Plated Inline Check Valve.
Compressor Dimensions: 8.96” L. x 3.94” W. x 6.77” H.
2.5 Gallon Tank – 1/4″ NPT Ports(x6)
Air Tank Dimension: 23.5″L. x 6.0″W. x 7.5″H.
This On Board System Includes:
*30 amp Relay.
*Pressure Switch (110psi ON / 145 psi OFF)
1/4 NPT M x 1/8″ NPT F Reducer
1/4″ NPT M x 1/4″ Tube Comp Fitting
1/8″ NPT M x 1/4″ Tube Comp Fitting
1/4″ NPT M Plug(x2)
175psi Safety valve
*20 Feet Air Lines Tubing
*Nuts/ Screws/ Washers for Compressor and Tank
*VIAIR 1 Year Warranty against Defects
2.5 Gallon Tank Fill Rate w/VIAIR 400c Compressor
0 to 105 PSI —–1 Min. 22 Sec.
0 to 145 PSI —–2 Min. 20 Sec.
85 to 105 PSI—-0 Min. 17 Sec.
110 to 145 PSI—–0 Min. 48 Sec.
Need a LARGER, more Heavy Duty Compressor??
We have Compressor Upgrade Options.
Assured Performance Dual Trumpet Horn & Viair 400c 2.5G OBA
This Assured Performance Dual Trumpet Truck Horn with a Viair 400c Compressor and 2.5G OBA makes for a loud, dual tone air horn sound that will get you noticed and will wake up inattentive drivers that share the road with you. The Assured Performance Air Horn will work in RV, SUV, Cars and of course make for a great Pickup truck air horn.
This air horn has zinc trumpet that will not rust. The diaphragm housing are made of cast aluminum polished to a mirror finish with stainless steel diaphragms. Popular mounting spot for underbody mount is behind the front bumper, actually mounting it to the radiator bracket that goes frame rail to frame rail on pickups.
This Viair 400c on board air system produces a whopping 150psi. The AP Dual Trumpet Horn with Viair 400c compressor is 33% Duty at 100psi. and is considered medium duty in the Viair line.
More Than Just An Air Horn Kit…
The Assured performance Dual Trumpet Train Style Air Horn & Viair 400c 2.5 Gallon Tank is an air advantage when using this air system. Simply put, it will have more volume air in reserve. This Viair Kit is perfect for air supply for this horn, air spring kits or air lockers and even filling tires with air. The kit includes the Viair patented air filter relocation kit. This way the 400c air compressor can be mounted under the vehicle and filter can be in a location that is clean.
Ideal places for the air filter is in engine compartment or inside the vehicle cabin under a seat or under a bed rail is also ideal. This will extend the life of the compressor greatly. Our Viair heavy duty kit includes a 110psi ON and 150psi OFF pressure switch which allows the air system to always maintain proper air pressure in the tank. The kit includes all the necessary fitting for install.
Purchase with confidence, we are an Authorized VIAIR DEALER.
You can use OE Horn Switch (steering wheel) to activate solenoid.
You don’t want to use your OE Horn Switch??

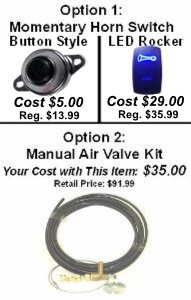

Choose option to include Horn Button Switch.
Do you want to Look and Feel like a Big Trucker???
Choose option to include Manual Air Valve Kit w/Lanyard
CLICK HERE TO VIEW MANUAL VALVE KIT
Don’t forget to get your Tire Fill Hose Kit
Choose 1 of 2 VIAIR Tire Fill Hose Kit options below:
The first of the two options (Yellow Hose Kit-Top of Pic Below) is Viair 35′ Coil Air Hose and is 200psi rated. This kit includes a Female Quick Connect fitting and Male Quick Connect Studs(2). Also includes a tire chuck. (PN:ACV0037-KT)
The second of the two options (Digital Hose Kit-Bottom of pic) is the Viair Digital Tire Fill 30′ Hose Kit. Includes Digital Tire gauge that reads 0-200psi. Also includes a canvas protective carrying case. (PN:ACV00044)
CLICK HERE for Digital Tire Fill Kit Info
A lot of installers prefer installing an air gauge for the on board air system. Add this gauge and save some money off buying separately.
This wiring kit includes gauge, on/off switch, 20 feet of 16g wire, 20 amp inline fuse, electrical connectors & zip ties.
This bracket will make mounting your compressor a little easier. You can weld or bolt this bracket to vehicles frame, then simple bolt the compressor to this bracket. This will save the installer a lot of install time.
*For Continental U.S. Shipments ONLY
